Product Description

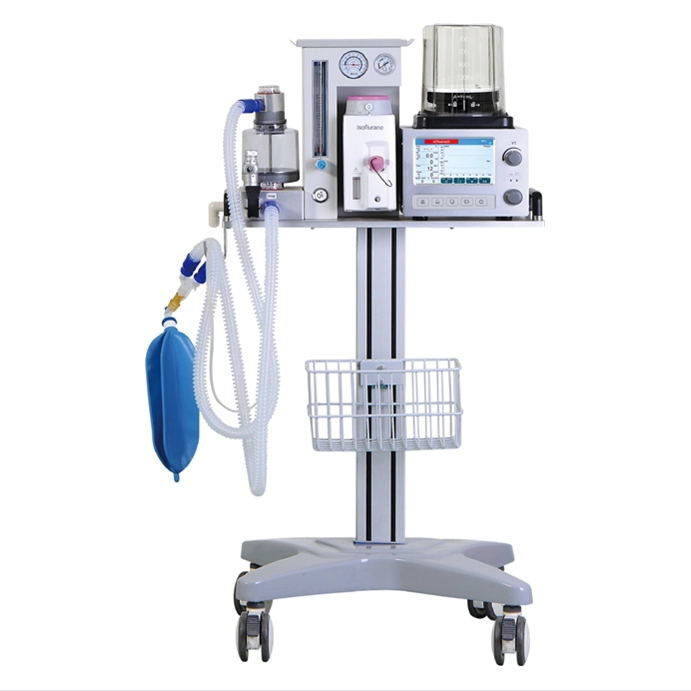

DM6B Veterinary Anesthesia System

Application

Veterinary Anesthesia System is widely applied to veterinary clinics, hospitals and laboratories, as always received good reputation from clients around the world.

DM6B model designed for safe, simple and controllable inhalation anesthesia for animals. The Veterinary Anesthesia System provides rapid control of anesthetic depth with little resistance to respiration from high to low acuity, simple to complex cases, small to big animals, like Dogs, Cats, Rabbits, Mice, Birds, etc.

Trust point

4 casters with 2 individual brakes.
Centered ventilation: precision in an anesthesia ventilator with multiple ventilation
Modes: IPPV, A/C, SIMV, SIGH and MANUAL.
Compact interface and 7" TFT LCD screen give you better operating experience.
Flexible configurations able to customize your requirements.
International standard and advanced technology suitable for wide range use.
Over 5,000 units are installed in more than 200 countries.
Designed and manufactured by Superstar Medical with over 14 years of experience in veterinary field.

Safety

Three level alarm system, visual and sound alarm information.
With lots of alarm, reminder and protection functions.
Advanced power management control technology.
Built-in backup battery provide the emergency power supply up to 2-3 hours for the unit.

Advantage

7" screen displays information area, alarm area, monitoring area, and setting area.
High precision mechanical flowmeter, instantly know the fresh gas flow to animals.
Vaporizer with temperature, pressure, flow compensation and self-lock function, keep safety anytime.
Real time pressure-time, flow-time oscillogram
Manual and mechanical ventilation for safer operation.
External sensor design makes parameters setting more accurate.
Wide use range for animals within 200KG.
Anesthesia Gas Scavenging System (AGSS) are optional.

Ventilation mode

IPPV, A/C, SIMV, SIGH, MANUAL

Ventilator parameter range
Flowmeter	O2 (0～5L/min)
Rapid Oxygen Supply	25L/min～75L/min
Tidal Volume (Vt)	0, 20 mL ～ 1500 mL
Frequency (Freq)	1/min～100/min
I:E Ratio	2:1～1:6
Pressure Triggering Sensitivity	-20 cmH2O～0 cmH2O (Based on PEEP)
Flow Trigger Sensitivity	0.5 L/min ～ 30 L/min
SIGH	0 (off) 1/100 ～ 5/100
Apnea Ventilation	OFF,5 s ～ 60 s
Pressure Limit	20 cmH2O ～ 100 cmH2O

Monitoring parameter
Frequency (Freq)	0/min ～ 100/min
Tidal Volume (Vt)	0 mL ～ 2000 mL
Minute Volume (MV)	0 L/min ～ 100 L/min

Wooden case size
Main Component Packing Size	L 680xW 840xH 695mm
G.W.	60KG
N.W.	26KG
Accessory Packing Size	L 650xW 690xH 520mm
Accessory Gross Weight (G.W.)	29KG
Accessory Net Weight (N.W.)	11KG
Total Cubic Meter (CBM)	0.633m3
