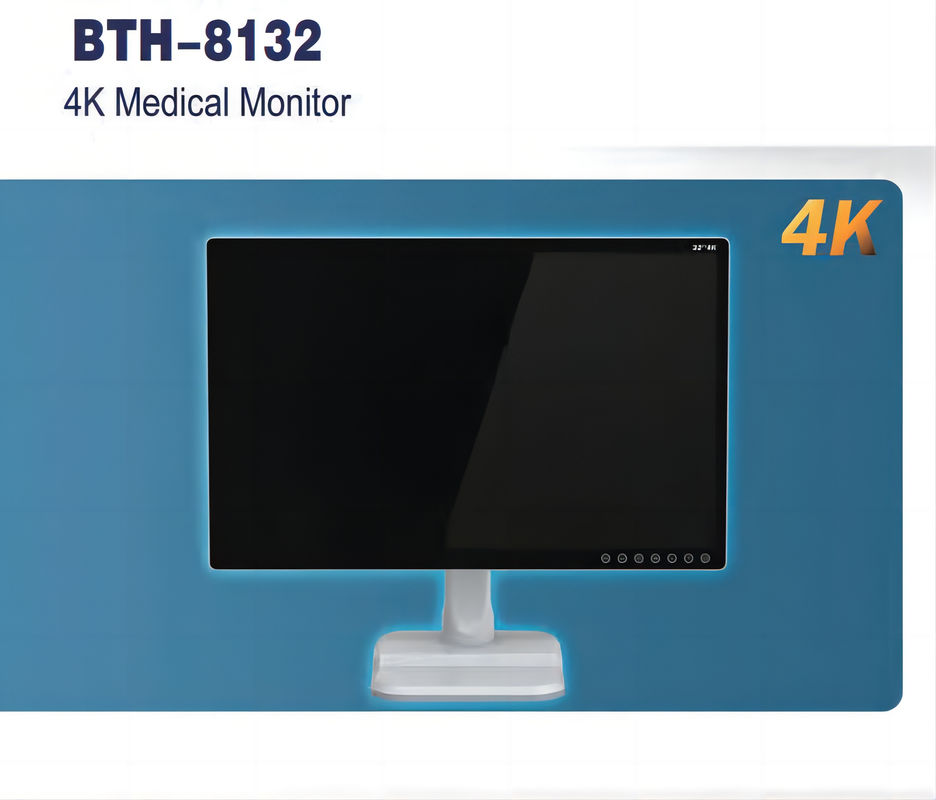

BTH-8032 BTH 8132 Surgical 4K Medical Monitor Eco Friendly LED Backlight

BTH-8032 BTH 8132 Surgical 4K Medical Monitor Eco Friendly LED Backlight

4K Medical Monitor Eco Friendly

LED Backlight Surgical 4K Medical Monitor

LED Backlight 4k surgical monitor

Model Number:

BTH-8032 8132

Contact Us

Request A Quote
Product Details
Highest Brightness
Medical Monitor
Power Supply:
External Power Supply 12V/8.5A
Screen Size:
24 Inch\32 Inch
Endoscope/electronic Gastrointestinal Endoscopy, Laparoscopy
Payment & Shipping Terms
Product Description

BTH-8032 BTH 8132 Medical Monitor Environmentally friendly LED backlight

Product Description
The meidcal monitor adopt widescreen full HD panels with accurate color rendering, excellent layering, smooth and dynamic images and an expanded visual scope, which meet the current rapidly changing demands for medical displays and is able to provide clear and precise observation of surgical sites together with our camera system in minimally invasive surgery.This product is perfectly suited to meet the requirements of various kinds of endoscopic displays and ICU displays due to its white frame, water-proof design, antibacterial treatment, compliance with electromagnetic compatibility regulations and multiple video input/output interfaces.
Product Features
  1. High-performance I/P conversion
  2. Bright color separation deep compensation
  3. Environmentally friendly LED backlight
  4. Dynamic dark area color reconstruction technology
  5. Over Drive accelerates response and eliminates screen smear
  6. Digital image transient enhancement technology
  7. Unique white balance automatic adaptation technology
  8. Gamma value adjusted one by one before leaving the factory
  9. Personalized three primary color adjustment permissions
  10. Operate custom screen ratio adjustment between different modes


BTH-8032 BTH 8132 Surgical 4K Medical Monitor Eco Friendly LED Backlight 0
3840x2160 utra-high-definition image output showing richer textures and more accurate tissue identification. 3840x2160 pixel image output, showing richer texture, more accurate tissue identification; Wider color gamut truly restore the color of organs and tissues, and locate blood vessels, lymph nodes and nerves faster.


Product Name BTH-8024 BTH-8032
Screen Size 24" 32"
Appearance White metal shell
Power Supply External power supply
Power Supply Specifications 12V/8.5A
Resolution 1920x1080
Proportion 16:9
Factory Brightness 500±20% 400
Highest Brightness 600 400
Contrast 1000:1 1200:01:00
Display Color 16.7M (6bit) 16.7M 8bit
Dot Pitch 0.2745x0.2745 121.25(H)xRGBx363.75(V)
Response Time 14ms 8ms
Perspective 178/178 178/178
Dimensions (Without Base) 570(W)x345(H)x65(D)mm 746(W)x481(H)x67(D)mm
Installation Standard VESA 100x100mm VESA 200x100mm
Power Consumption 80W max 100W max
Energy Saving EPA, VESA
Operating Temperature 5~40
MTBF (Mean Time Between Failures) >50,000 hours
Signal Interface HDMI/DVI/GA/CVBS/S-VIDEO
Application Endoscope/electronic gastrointestinal endoscopy, laparoscopy
Factory Curve AMA2.6
Factory Color Temperature 6500K
Color Gamut 72% NTSC (sRGB)
Brightness Uniformity >75%
Brightness Equalization Technology Brightness stabilization system
Environmental Light Compensation N/C
Dot Clock Frequency 154MHz 400MHZ
Scanning Frequency 50Hz-75Hz 58HZ-97HZ
Backlight module LED LED

BTH-8032 BTH 8132 Surgical 4K Medical Monitor Eco Friendly LED Backlight 1




BTH-8032 BTH 8132 Surgical 4K Medical Monitor Eco Friendly LED Backlight 2
