Product Description

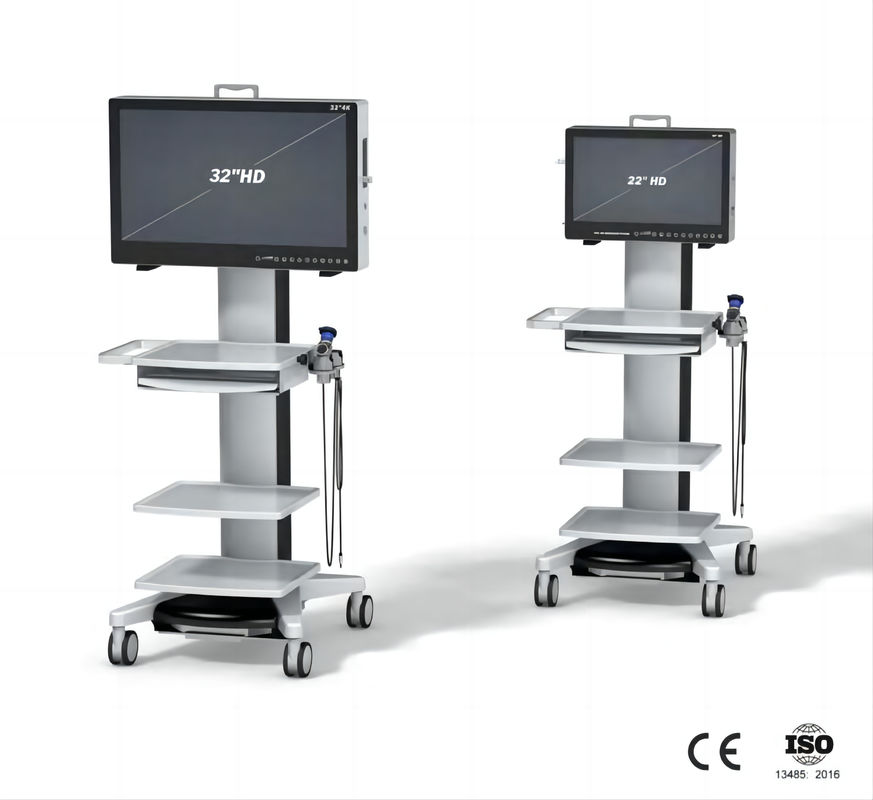

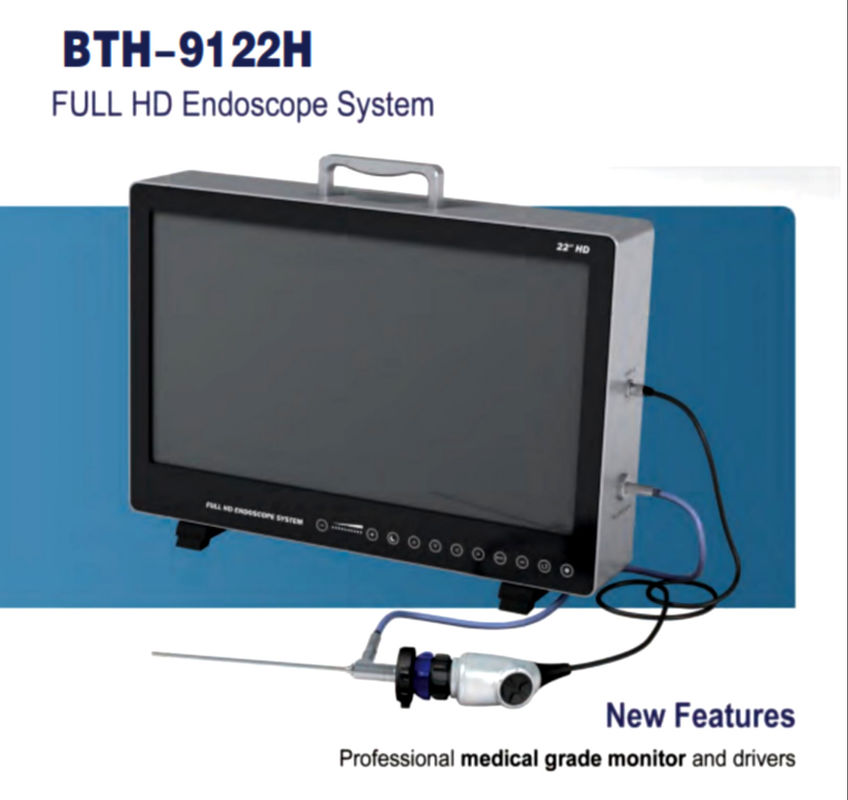

The FULL HD Endoscope System is a cutting-edge medical imaging solution that provides high-definition visualization for endoscopic procedures. It incorporates advanced technology to deliver clear and detailed images.
Product Features
1/2.3 SONY CMOS FULL HD Image Sensor: The camera system is equipped with a high-quality 1/2.3-inch SONY CMOS image sensor, providing excellent image resolution and clarity for detailed visualization.
Strobe Light Compatibility: The system can be easily matched with strobe light sources, allowing strobe laryngoscopy procedures. This feature enhances examination and evaluation of the larynx by providing synchronized illumination.
FHD camera and LED cold light source integration: ensure clear and vivid imaging. It is combined with an integrated LED cold light source to provide bright and consistent illumination during endoscopic procedures.
Built-in USB Full HD Image Storage and Recording: The camera system includes built-in storage functionality, allowing you to save and store high-definition images directly to a USB device. This feature allows for easy archiving and documentation of endoscopy findings.
Universal C-Mount Thread: Ensures compatibility with a wide variety of endoscope optics and accessories. This allows flexible use in various endoscopic procedures.
IPX8 Waterproof Camera: Provides reliable liquid ingress protection during endoscopic procedures. This feature ensures camera system durability and longevity, even in challenging clinical environments.
| Camera head | FULL HD imaging(1920×1080) |
| 1/2.3 inch SONY CMOS | |
| IPX8 waterproof | |
| Voltage range (current consumption) | 100-240V(50 VA) |
| Frequency | 50-60 Hz |
| Device protection | 2x T3,15A |
| Video system | Image resolution: FHD 1920×1080 |
| Horizontal resolution: 900 TVL | |
| SNR: 50DB,Tolerance 20% | |
| .Scanning system: Progressive Scanning | |
| White balance automatically | |
| Screen size | 22 inch |
| Light source | Built-in 80W LED cold light source |
| Recording(optional) | Image format: JPG 1920×1080 |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| Video format: Full HD 1920×1080; | |
| Connection:USB | |
| Connections | Video out terminal: |
| 1x HDMI | |
| 1x DVI | |
| 1×CVBS | |
| Protection class (acc.to IEC 60601-1) | Ⅰ |
| Safety class | BF |
| Standard | IEC 60601-1-2 |
| Device classification (EU) 20171745,annex VIII | Ⅰ |
| Features | White balance |
| Freeze function | |
| Zoom in/Zoom out | |
| Touch Buttons/Touch Screen | |
| USB storage | |
| Photo captureVideo recording | |
| Language | Chinese/English/Japanese/Korean/Spanish/German/Russian |
| Dimensions |
528(L)×105(W)x370(H)
|
| Weight | 9.85KG |
Monitor
|
 |
