Product Description

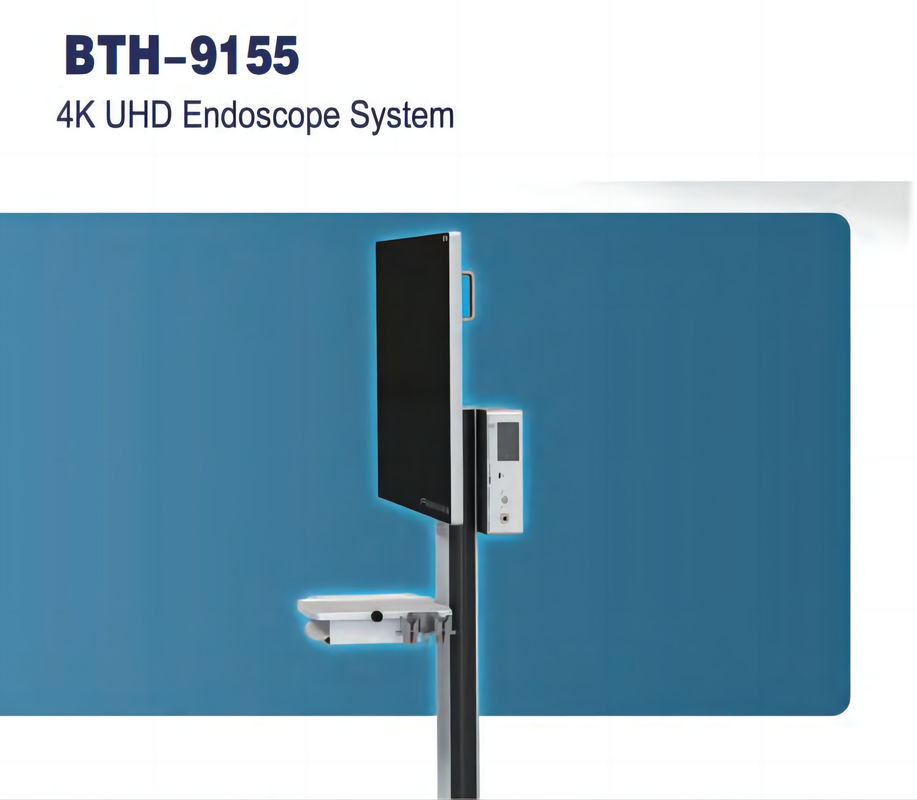

The 4K UHD Endoscopy System is an advanced medical imaging solution that provides high-resolution visualization for endoscopic procedures. With its 4K UHD imaging capabilities, it provides clear, detailed images of the internal structures of the body. The system features a user-friendly interface and integrated image storage and recording, among other features. It is designed for durability and reliability to ensure optimal performance in clinical environments. The 4K Ultra HD endoscopy system improves diagnostic accuracy and provides an immersive visual experience for improved patient care during endoscopy.
Product Application
Gastrointestinal endoscopy: 4K UHD Endoscope System can be used for gastroscopy, colonoscopy, esophagoscopy and other gastrointestinal endoscopy to help doctors accurately diagnose digestive system diseases.
Urinary system endoscopy: the system can be used for urinary system endoscopy such as cystoscopy and urethroscopy, and can be used for diagnosis and treatment of urethra, bladder, kidney and other diseases.
Respiratory endoscopy: used for bronchoscopy and fiberoptic bronchoscopy to help doctors evaluate lung diseases, including lung cancer, pneumonia, etc.
Arthroscopy: Used for arthroscopy and surgery, such as knee arthroscopy, shoulder arthroscopy, etc., to evaluate and treat joint injuries, arthritis and other problems.
|
Product Features
|
 |
| Camera head | UHD imaging(3840×2160) |
| 1/2.5 inch SONY CMOS | |
| IPX8 waterproof | |
| Voltage range (current consumption) | 100-240V(50 VA) |
| Frequency | 50-60 Hz |
| Device protection | 2x T3,15A |
| Video system | Image resolution: UHD 3840×2160 |
| Horizontal resolution: 1800 TVL | |
| SNR: 50DB,Tolerance 20% | |
| .Scanning system: Progressive Scanning | |
| White balance automatically | |
| Screen size | 55 inch |
| Light source | Built-in 80W LED cold light source |
| Recording(optional) | Image format: JPG 1920×1080 |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| Video format: Full HD 1920×1080; | |
| Connection:USB | |
| Connections | Video out terminal: |
| 1x HDMI 2.0(3840×2160) | |
| 1x DVI | |
| 1×3G-SDI | |
| Protection class (acc.to IEC 60601-1) | Ⅰ |
| Safety class | BF |
| Standard | IEC 60601-1-2 |
| Device classification (EU) 20171745,annex VIII | Ⅰ |
| Features | White balance |
| Freeze function | |
| Zoom in/Zoom out | |
| Touch Buttons/Touch Screen | |
| USB storage | |
| Photo captureVideo recording | |
| Language | Chinese/English/Japanese/Korean/Spanish/German/Russian |
| Dimensions | 461(L)×353(W)×190(H) |
| Weight | 10KG |
