12 Inch Touch Screen Urology Holmium Laser Prostate Surgery

12 Inch Touch Screen Urology Holmium Laser Prostate Surgery

12Inch Touch Screen Urology Holmium Laser

holmium laser prostate surgery

Touch Screen Holmium Laser Prostate Surgery

Contact Us

Request A Quote
Product Details
Name:
Holmium Laser
Wavelength:
532nm±5%
Laser Wavelength:
2.1pm ±0.1 Pm
Display Screen:
12 Inch Touch Control Screen
Beam Pattern:
Multimode
Usage:
Urology And ENT Treatment
Payment & Shipping Terms
Product Description

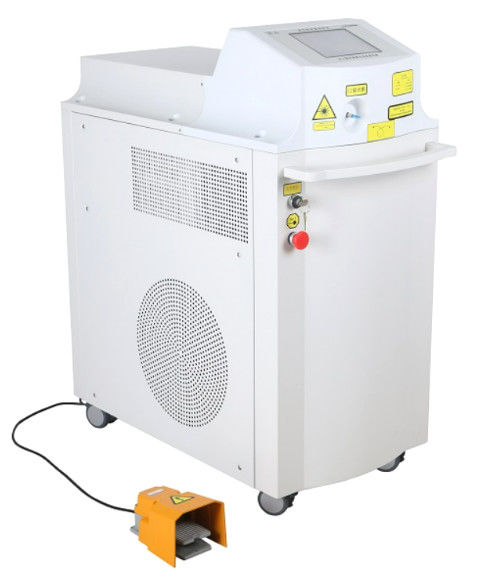

JRH-Ⅰ Holmium Laser For Urological Treatment Of Stones



Product Description & Working Principle



A holmium laser is a medical device that uses pulses of a holmium laser beam to deliver treatment. Holmium lasers are often used in enucleation of the prostate, a minimally invasive procedure designed to remove the tissue inside the prostate gland located around the urethra (the tube that leads from the bladder to the opening of the urethra).



During holmium laser enucleation of the prostate, the patient is usually under general anesthesia. The doctor introduces the holmium laser into the urethra, and precisely cuts and vaporizes the prostate tissue by controlling the pulse and energy output of the laser beam. This treatment is minimally invasive, resulting in less postoperative pain and recovery time, and smaller incisions than traditional surgical methods.



Holmium laser enucleation of the prostate is widely used in the treatment of benign prostatic hyperplasia and prostate cancer. Through the precise operation of the holmium laser, the damage to the surrounding tissue can be reduced, and the function of the urethra and the quality of life of the patient can be protected to the greatest extent. This procedure is usually effective in relieving symptoms associated with prostate disease, such as frequent urination, urgency, and dysuria, and improving the patient's urinary flow rate and smoothness of urination.



Advantage



  • Modular design improves product stability.
  • Originally imported laser, crushed rocks are powdered, easy to discharge.
  • 12-inch large display touch control screen, easy and sensitive operation.



NO. Item Parameter
1 Laser wavelength 2.1pm ±0.1 pm
2 Beam pattern Multimode
3 Maximum output power of laser terminal Not less than 60W
4 Output power range of laser terminal 5W~60W±10%
5 Maximum Pulse Energy of Laser Terminal 4.0J±20%
6 Laser Terminal Pulse Energy Range 0.5J〜4.0J, step 0.5J, error (±20%).
7 Maximum Pulse Power of Laser Terminal 13.4kW±20%
8 Laser Terminal Output Power Instability St Better than + 5%
9 Reproducibility of Laser Terminal Output Power Better than + 5%
Rp
10 Laser terminal divergence angle 0.16rad±20%
11 Therapeutic laser output mode Repetitive Pulse Output
12 Laser output pulse width Wide and narrow pulses
13 Laser output pulse range Wide pulses 300|js〜650|js
narrow pulses 200|js~300|js, ± 20% o not adjustable, tolerance ±20%.
14 Laser output pulse repetition frequency 10 Hz to 30 Hz, step 5 Hz, error (± 10%)
15 Aiming beam wavelength 532nm±5%
  Max. output power PW5mW
16 Laser protective glasses ptical density value 34
  Visible light transmittance 370%
