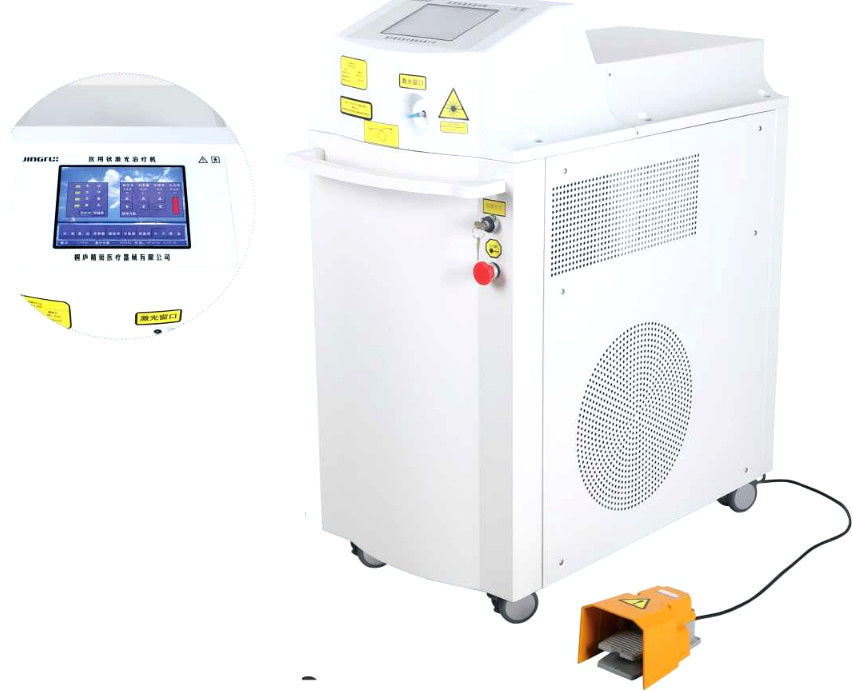

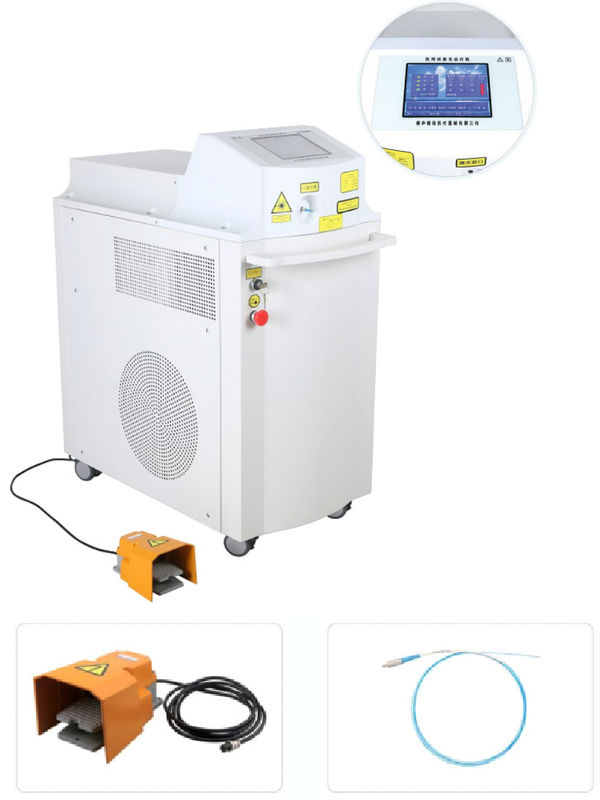

Multi Functional Holmium Laser Therapeutic Machine Precise Treatment
Application
Holmium Laser Therapeutic Machine is widely used in the medical field, mainly in the following fields:
Urology: treatment of benign prostatic hyperplasia, urinary tract stricture, urinary stones and other diseases.
Otorhinolaryngology: Treatment of diseases such as nasal polyps and throat papillomas.
Urological endoscopic surgery: bladder tumor resection, bladder stone lithotripsy and other operations.
Working Principle
Holmium Laser Therapeutic Machine uses a holmium laser as a therapeutic source, converting electrical energy into a high-energy pulsed laser beam. Holmium laser has a wavelength of 2.1 microns, which can penetrate deep into tissue and be effectively absorbed by tissue. Through optical fiber transmission, the laser beam precisely irradiates and cuts the diseased tissue, realizing the resection and repair of the diseased part.
Features
High-efficiency treatment: Provide high-energy holmium laser beams to complete treatment quickly, reducing operation time and patient discomfort.
Precise treatment: The laser beam is transmitted through the optical fiber, with strong focusing ability, precisely irradiates the diseased tissue, and protects the surrounding normal tissue to the greatest extent.
High safety: Adopt advanced fiber optic technology to ensure stable laser output and precise control, reducing the risk of postoperative complications and injuries.
Easy to operate: intuitive operation interface and control system, adjustment and setting according to treatment needs, simple and convenient operation, doctors can easily grasp and operate the equipment.
Multi-functional application: It is widely used in urology, ENT and other fields, and has multiple clinical application values.
NO. | Item | Parameter | |
1 | Laser wavelength | 2.1pm ±0.1 pm | |
2 | Beam pattern | Multimode | |
3 | Maximum output power of laser terminal | Not less than 60W | |
4 | Output power range of laser terminal | 5W~60W±10% | |
5 | Maximum Pulse Energy of Laser Terminal | 4.0J±20% | |
6 | Laser Terminal Pulse Energy Range | 0.5J〜4.0J, step 0.5J, error (±20%). | |
7 | Maximum Pulse Power of Laser Terminal | 13.4kW±20% | |
8 | Laser Terminal Output Power Instability St | Better than + 5% | |
9 | Reproducibility of Laser Terminal Output Power | Better than + 5% | |
Rp | |||
10 | Laser terminal divergence angle | 0.16rad±20% | |
11 | Therapeutic laser output mode | Repetitive Pulse Output | |
12 | Laser output pulse width | Wide and narrow pulses | |
13 | Laser output pulse range | Wide pulses 300|js〜650|js narrow pulses 200|js~300|js, ± 20% o not adjustable, tolerance ±20%. | |
14 | Laser output pulse repetition frequency | 10 Hz to 30 Hz, step 5 Hz, error (± 10%) | |
15 | Aiming beam | wavelength | 532nm±5% |
Max. output power | PW5mW | ||
16 | Laser protective glasses | ptical density value | 34 |
Visible light transmittance | 370% |
