S6100A Basic General Anesthesia Ventilator Machine 7" TFT LCD Screen

S6100A Basic General Anesthesia Ventilator Machine 7" TFT LCD Screen

Basic General Anesthesia Ventilator Machine

7" TFT LCD screen Anesthesia Ventilator

7" TFT Screen General Anesthesia Ventilator

Contact Us

Request A Quote
Product Details
Product Name:
S6100A Anesthesia Machine
Ventilation Mode:
Gas Source:
O2, N2O, AIR
Ventilation Modes, Prioritizes Patient Safety
280 KPa ~ 600 KPa
100 ~ 240 V
Input Power:
80 VA
Power Frequency:
50/60 Hz
Payment & Shipping Terms
Product Description

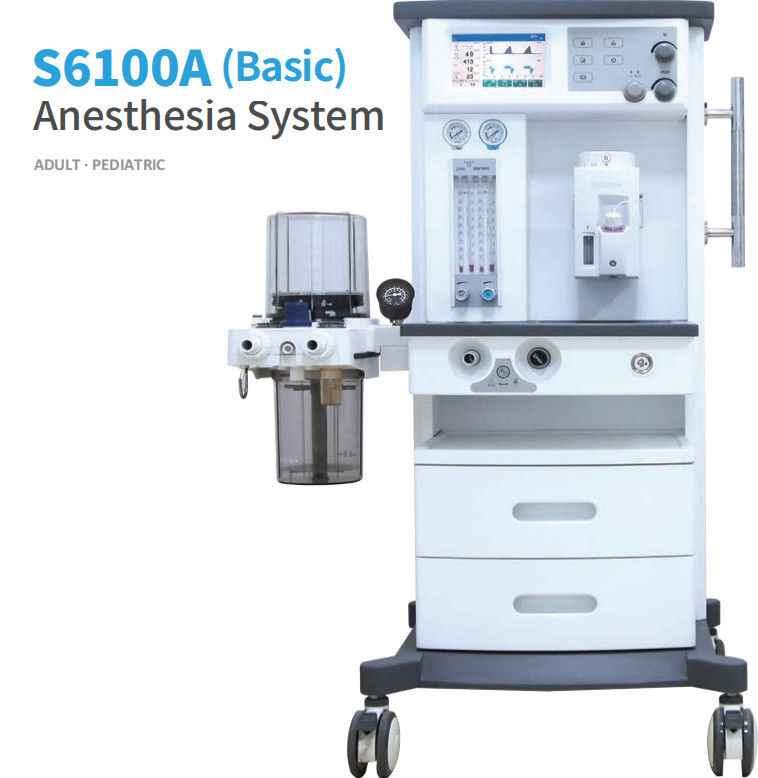

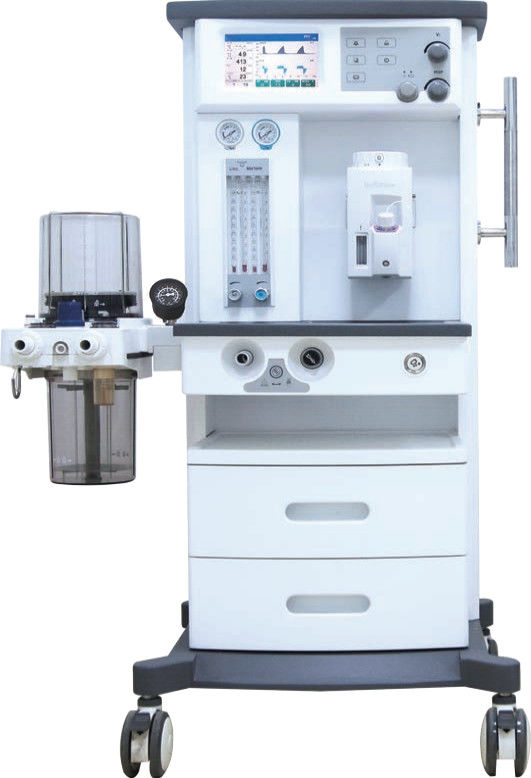

S6100A Anesthesia System For Adult and Pediatric

Description & Application
The S6100A anesthesia machine is a highly reliable and versatile device suitable for various healthcare settings, including Intensive Care Units (ICU), operating rooms, and Anesthesiology Departments. It is specifically designed to ensure ease of use and maximum patient safety during anesthesia procedures. The machine incorporates essential functions and features advanced ventilation modes for effective respiratory management in adults, children, and infants. With a focus on professional design and incorporating proven ventilation technology, the S6100A anesthesia machine offers seamless integration with an advanced anesthesia table, optimizing workflow efficiency for healthcare professionals. Its ergonomic design and user-friendly interface make it an indispensable tool in anesthesia practice, delivering optimal patient care and outcomes.
The S6100A anesthesia machine offers advanced ventilation modes, prioritizes patient safety, and has a user-friendly design. It is versatile for patients of different age groups and integrates well with other medical devices. The machine is durable and reliable, providing optimal care during surgical procedures.


Trust point
  • Providing customers with high quality and cost-effective anesthesia machine.
  • The Medical team is a group of experienced and dedicated professionals with a passion for more than 20 years. We listen to our customers and integrate their insights in our machine development. Flexible configurations to suit customers’ needs.
  • Countless feedback from customers give good reviews.

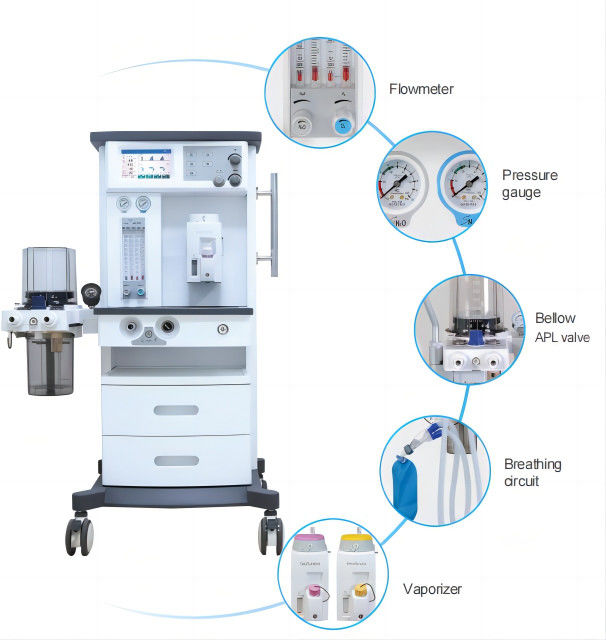

  • Real time pressure-time, flow-time loop Oscillogram and high precision O2 concentration detection function included.
  • 7" TFT LCD screen displays the Ventilation parameters, Alarm information and Oscillogram.
  • High precision flowmeter, instantly know the fresh gas flow to your patient.
  • Integrated breathing circuit design, ensure easy operating and keep tidy.
  • Multiple working modes such as volume control and pressure limit, adapt to wide range patient.
  • Vaporizer with temperature, pressure, flow compensation and self-lock function, keep safety anytime.
  • Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects.
  • Pressure-time, flow-time oscillogram show in real time.
  • Vital sign monitor and Anesthetic gas monitor are optional.
  • ACGO and fast oxygen supply - Emergency use and revival after opertation.
Ventilation mode


Ventilator parameter range
O2 (0 ~ 10 L/min)
N2O (0 ~ 10 L/min)
or AIR (0 ~ 10 L/min)
Rapid oxygen supply 25 L/min - 75 L/min
Tidal volume
0, 20 mL ~ 1500 mL
Maximum MV
≥18 L/min
Frequence(Freq) 1 /min - 100 /min
I:E 2:1(1:0.5)- 1:6
PEEP 0 cmH2O - 30 cmH2O
Pressure triggering sensitivity (PTr) -20 cmH2O - 0 cmH2O (Based on PEEP)
Flow trigger sensitivity (FTr) 0.5 L/min - 30 L/min
Pressure control (PC)
5 cmH2O ~ 70 cmH2O
SIGH 0 (off) 1/100 - 5/100
Apnea ventilation OFF, 5s - 60s
Pressure limit 20 cmH2O - 100 cmH2O


Alarm and protection
The AC power failure alarm Power failure or no connection
Internal battery backup low voltage alarm
< 11.3 ± 0.3 V
No tidal volume ≤ 5 mL within 6 s
High oxygen concentration alarm 19 % - 100 %
Low oxygen concentration alarm 18 % - 99 %
High airway pressure alarm 2 cmH2O - 100 cmH2O
Low airway pressure alarm 0 cmH2O - 20 cmH2O
High minute volume alarm
Adult (5 L/min ~ 20 L/min)
Paed (1 L/min ~ 15 L/min, 0 ~ 10 L/min)
Low minute volume alarm
0 ~ 10 L/min
Continuous pressure alarm (PEEP+1.5 kPa) over 16 s
Suffocation warning 5 s - 60 s no spontaneous ventilation
The maximum limited pressure ≤ 12.5 kPa
Fan error Show on screen
Oxygen deficit Show on screen


Monitoring parameter
Frequence(Freq) 0 /min - 100 /min
Tidal volume (Vt) 0 mL - 2000 mL
MV 0 L/min - 100 L/min
Oxygen concentration 15 % - 100 %
Working condition
Gas source O2, N2O, AIR
Pressure 280 kPa ~ 600 kPa
Voltage 100 ~ 240 V
Power frequency 50/60 Hz
P-T (pressure - time)
F-T (flow - time)
P-V loop (pressure - volume loop)
Wooden case packing size
Wooden case packing size :   L 790 * W 740 * H 1460 mm
G.W. :103 KG              N.W. :76 KG
