| Ventilation mode |
|
IPPV, A/C, PCV, PSV, SIMV, SIGH, MANUAL
|
| Ventilator parameter range | |
| Flowmeter | O2(0.2 - 15L/min) N2O(0.2 - 12L/min) Air(0.2 - 15L/min) |
| Rapid oxygen supply | 25 L/min - 75 L/min |
| Tidal volume | 0, 10 mL - 1500 mL |
| Frequence(Freq) | 1 /min - 100 /min |
| I:E |
VTH 4:1 ~ 1:8 VTL 2:1 ~ 1:8
|
| PEEP | 0 cmH2O - 30 cmH2O |
| Pressure triggering sensitivity (PTr) | -20 cmH2O - 0 cmH2O (Based on PEEP) |
| Flow trigger sensitivity (FTr) | OFF, 0.5 L/min - 30 L/min |
| Pressure control (PC) | 5 cmH2O - 70 cmH2O |
| SIGH | 0 (off) 1/100 - 5/100 |
| Apnea ventilation |
OFF, 5 s ~ 60 s
|
| Pressure limit | 20 cmH2O - 100 cmH2O |
| Alarm and protection | |
| The AC power failure alarm | Power failure or no connection |
| Internal battery backup low voltage alarm | < 10.2 ± 0.3 V |
| No tidal volume | ≤ 5 mL within 6 s |
| High oxygen concentration alarm | 19 % - 100 % |
| Low oxygen concentration alarm | 18 % - 99 % |
| High airway pressure alarm | 2 cmH2O - 100 cmH2O |
| Low airway pressure alarm | 0 cmH2O - 98 cmH2O |
| High minute volume alarm | 0.2 L/min,0.5 L/min - 100 L/min； |
| Low minute volume alarm | 0 L/min - 99 L/min |
| Continuous pressure alarm | (PEEP+1.5 kPa) over 16 s |
| Suffocation warning | 5 s - 60 s no spontaneous ventilation |
| The maximum limited pressure | ≤ 12.5 kPa |
| Fan error | Show on screen |
| Oxygen deficit | Show on screen |
| Monitoring parameter | |
| Frequence(Freq) | 0 /min - 120 /min |
| Tidal volume (Vt) | 0 mL - 2000 mL |
| MV | 0 L/min - 100 L/min |
| Oxygen concentration | 15 % - 100 % |
| Working condition |
| Gas source |
| Pressure |
| Voltage |
| Power frequency |
| O2, N2O, AIR |
| 280 kPa ~ 600 kPa |
| 100 ~ 240 V |
| 50/60 Hz |
 |
|
|

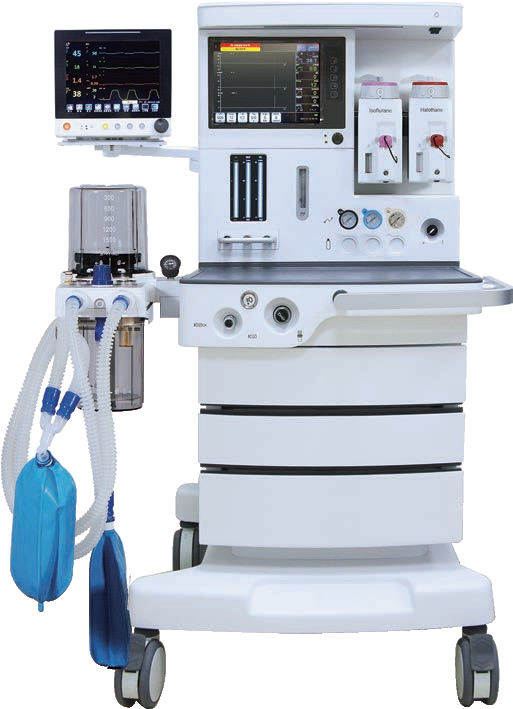

| 12.1" TFT LCD touch screen | Optional part 1 | Optional part 2 |
| Displays the Ventilation parameters, Alarm information and Oscillogram. High sensitivity touch screen ensures accurate and easy operation. Alternate button for dual control. |
Anesthetic gas monitor, vital signs monitor: real-time monitoring of anesthetic gas and patient′s condition. |
AGSS: To enhance the safety of the environment in which members of staff in close proximity with waste anesthetic gases and vapors (agents) work. |
|
|
|
| Electronic flowmeter | Vaporizer | Breathing circuit |
| High precision flowmeter, instantly know the fresh gas flow to patient. O2 and N2O linkage device ensure O2 concentration no less than 25%. |
Accurately delivers a calibrat ed flow, Halothane, Enflurane, Isoflurane, Sevoflurane for choice. Suitable for low flow anesthesia, save cost. |
Integrated breathing circuit design. Breathing tube resistants high temperature sterilization. Ensure easy operating and keep tidy |
| Bellow Integrated bellow 0mL-1500mL. Suitable for all range of patients. APL valve Automatic decompression to ensure safety ETCO2 End-tidal carbon dioxide concentration monitoring, real-time understanding of the patient′s state. Pedal User-friendly design is convenient for doctors to relax foot. Central brake is optional. Drawer 3 drawers with a large capacity for storing accessories. |
Handle Easy and safe transport. ACGO and fast oxygen supply Emergency situation and revival after operation. LED top light Convenient for endoscopy operation. Pressure gauge Real time pressure for Air, O2, N2O from central gas supply and gas cylinders. Caster Diameter : 125mm, 2 individual brakes of 4 casters. |
|
