Precision Coblation Plasma Surgery System for Tonsillectomy,Adenoidectomy Operations

Precision Coblation Plasma Surgery System for Tonsillectomy,Adenoidectomy Operations

Place of Origin:

China

Brand Name:

Better

Certification:

iso, Cfda

Model Number:

VE06E

Contact Us

Request A Quote
Product Details
Similar Brand:
Artrhocare
Function:
Ablation,Cutting,Coagulation, Grasping,Peeling,Clamping And Suction
Technology:
Coblation Technology
Application:
ENT Surgery, Tonsillectomy, Adenoidectomy, Thyroids, Tumor,Head&Neck Tumor
Power Settings:
Low, Medium, High
Electrode Materials:
Tungsten, Titanium, Stainless Steel
Safety:
High
Keywords:
Coblation Plasma Surgery System
Safety Features:
Automatic Shutdown, Overload Protection
Electrode Types:
Standard, Precise, Micro
Feature:
Light Pain
Mode:
Radiofrequency Ablation
Payment & Shipping Terms
Minimum Order Quantity
68 pc
Price
80-298USD
Packaging Details
Standard Carton
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
100000 sets per year
Product Description



Precision Coblation Plasma Surgery System for Tonsillectomy,Adenoidectomy Operations







Product Introduction



It is design specially for Tonsillectomy, Adenoidectomy, CAUP, UPPP, and nasal cavity lesion tissue treatment. Tonsillary and adenoidectomy, UPPP, CAUP, and nasal cavity lesion treatment. The diameter is thinner, which is more convenient for children to use; the liquid enters and exits in two channels and is separated separately, which can effectively prevent the cutter head from being blocked, and the electrode surface of the cutter head is plated with special metal for longer use. It has the function of cutting, ablation, hemostasis and coagulation. It is connect with SPK100 ENT plasma surgery system to perform the operation.

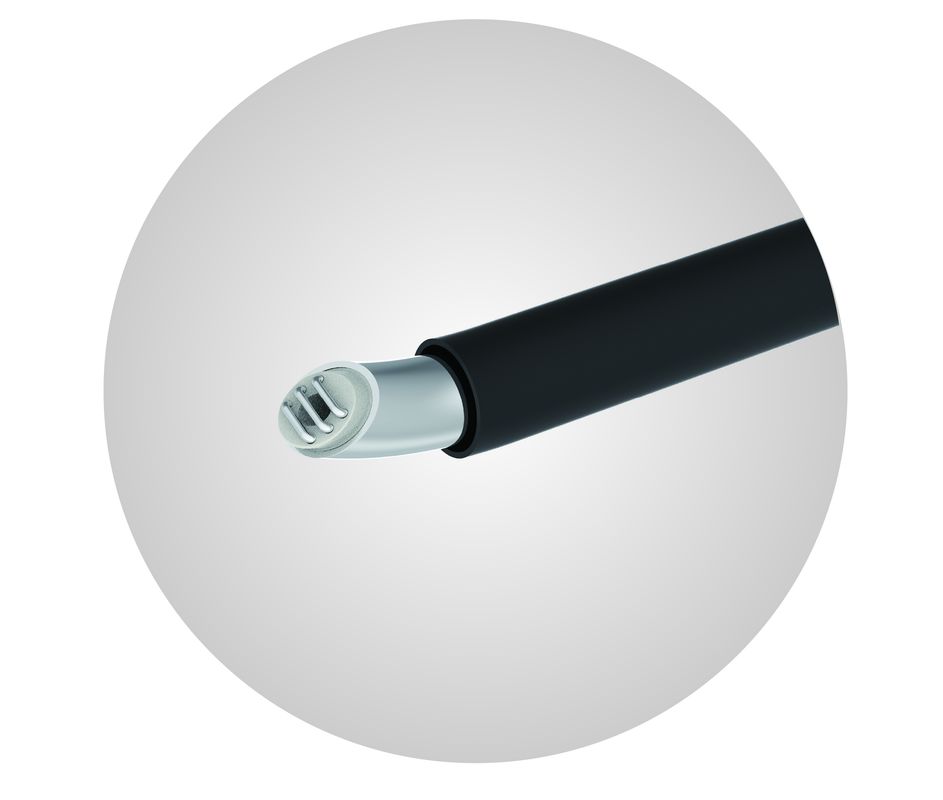

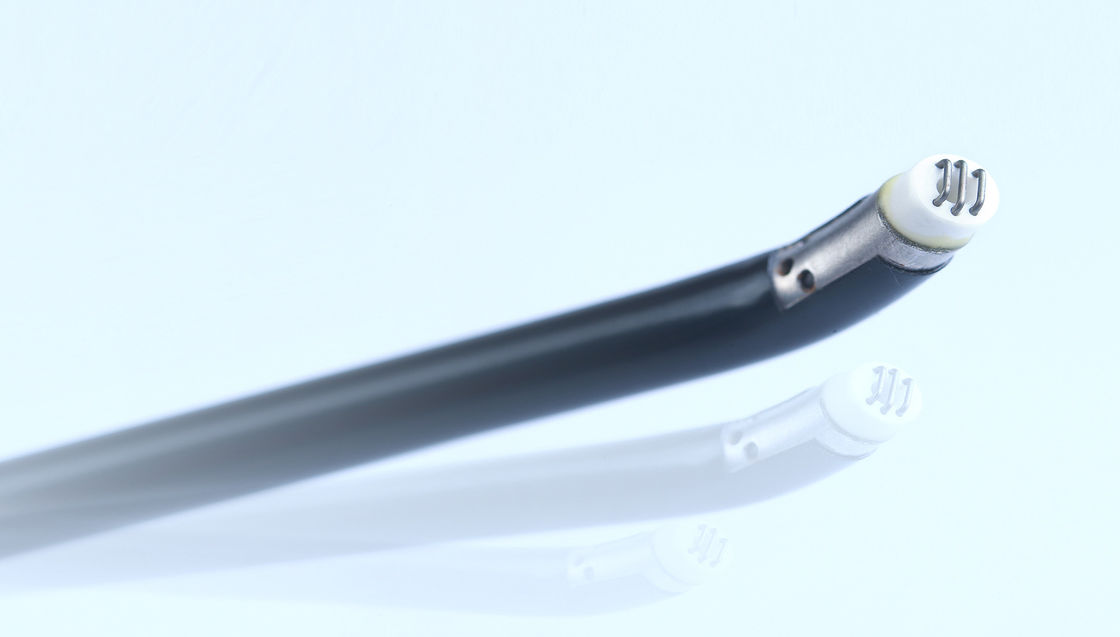

Product Tip Picture



Tonsillectomy Plasma Wand ENT Probe For Minimally Invasive Plasma Surgery 0



Product Application



  • Repeated acute attacks of chronic tonsillitis;
  • A history of abscesses around the tonsils;
  • Excessive hypertrophy of the tonsils, preventing swallowing or breathing, or affecting eustachian tube function;
  • simple III degree hypertrophy or near III degree hypertrophy tonsils;
  • Patients with rheumatic fever, nephritis, arthritis, and rheumatic heart disease who have suspected tonsils as the lesion;
  • Benign tonsil tumors.



Product Advanatages



  • Safety: Compared with traditional surgical methods (such as: electric knife, laser), the current does not flow through the human body, the working surface temperature is only 40 ° C to 70 ° C, and the surrounding tissue is less thermally damaged. When used in the recommended energy range, the cutting and ablation depth is controlled to ≤50μm.
  • Minimally Invasive: Compared with traditional surgical methods (such as electric knife, laser), it has less heat, reduces tissue thermal damage, reduces wound healing time, reduces wound bleeding and scar formation
  • High Efficiency: Compared with traditional surgical methods (such as: electric knife, laser), the patient's pain during surgery is significantly reduced, and the incidence of postoperative inflammation is significantly reduced. During the surgery, the doctor stops bleeding while cutting, and does not need other hemostasis tools.



System Set Up



Description Remark
Manufacturer Logo BETTER Brand.
Working Frequency 50Hz
Receptacle of Footswitch Connects with Footswitch which determines ablation or coagulation mode.
Receptacle of Treatment Handle Connects with the treatment accessories.
Power Switch System start power button. “O” means power off; “I” means power on.
ABLATION mode Selector Select ABLATION mode 1 or 2 Output waveform.
Indicator of Treatment Probe Connection LED turns on green when the probe cable is connected and turns on red when it is not connected.
Indicator of Footswitch Connection LED turns on green when the footswitch cable is connected and turns on Red when it is not connected.
ABLATION Power Setting Display

Shows the preset ABLATION output value in two digits.

“01” with Min. power output, and “10” with the highest output.

Ablation Output Power Up/Down Button The number displayed indicates the ablation nominal power, in watts, which will be delivered to the patient when the mode is activated. Only available for changing in ready mode.





Anesthesia



General anesthesia



Cutting Principle



Relying on the mechanical kinetic energy of the plasma in the electric field, it hits the molecular bonds (40-70 ° C) of the target tissue to lyse and ablate. The thermal damage depth is less than 0.5mm, and the trauma to normal adjacent tissues is small.



Treatment Diseases



Tonsillectomy, Adenoidectomy, CAUP, UPPP and the soft tissue at narrow spaces like nasal cavity.



Storage Condition



Electrodes shall be stored in environment of humidity less than 80%. no corrosive gas, well vented room. Taking complete protection to electrodes.

Workshop:

Precision Coblation Plasma Surgery System for Tonsillectomy,Adenoidectomy Operations 1Precision Coblation Plasma Surgery System for Tonsillectomy,Adenoidectomy Operations 2
