Application:

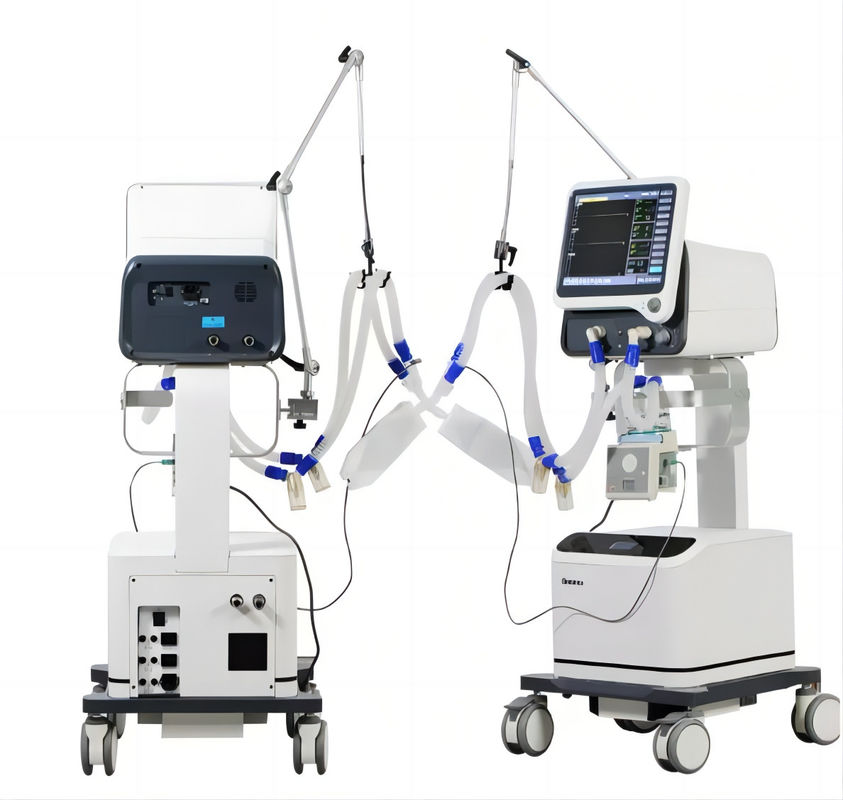

The S1200 ventilator, also named ICU ventilator with compressor, demonstrates exceptional performance in critical medical settings, such as operation rooms, ICU departments, and emergency treatment units. Its versatile design allows it to assist or replace spontaneous breathing for both adult and pediatric patients weighing more than 2 kilograms. With over 23 years of market-oriented ventilator expertise, our product is trusted for its professionalism, reliability, and ability to meet all ventilation needs.
Ventilator Machine ICU Features:
Versatile Ventilation Modes: The S1100B offers a wide range of ventilation modes suitable for ICU, emergency departments, and operation rooms, including PRVC, APRV, DUOLEVEL, V-SIMV, P-SIMV, IPPV, A/C, PCV, PSV, SPONT/CPAP, SIGH, and MANUAL.
Enhanced Patient Comfort: The ventilator utilizes a pressure and flow dual triggering mechanism for improved patient breathing and comfort during ventilation.
Rapid Oxygen Supply: Automatic high-flow-rate oxygen delivery is available within two minutes, ensuring quick oxygen supply for critical patients.
Real-Time Monitoring: Comprehensive display of pressure-time, flow-time, volume-time, ETCO2-time oscillograms provides real-time monitoring of the patient's condition.
Safe and Reliable Operation: The ventilator features separate designs for electronic circuits and gas flow, ensuring safe and stable operation.
Long-Life Internal Battery: A compact long-life internal battery provides emergency power, ensuring continuous ventilation and patient safety.
Efficient Alarm System: A three-level alarm system indicates the machine's overall condition, facilitating prompt issue identification and resolution.
| Ventilation mode | |
|
PRVC, APRV, DUOLEVEL, IPPV, PCV, PSV, V-SIMV,
P-SIMV, V-A/C, P-A/C, SIGH, SPONT/CPAP, MANUAL
|
|
| Ventilator parameter range | |
| Tidal volume (Vt) | 0, 20 ~ 2000 mL |
| Frequency (Freq) | 1 min ~ 100 min |
| Oxygen concentration | 21 % ~ 100 % |
| I:E | 4 : 1 ~ 1 : 8 |
| PEEP | 0 cmH2O ~ 40 cmH2O |
| Pressure triggering sensitivity (Ptr) | -20 cmH2O ~ 1000 cmH2O (Based on PEEP) |
| Monitoring parameter | |
| Frequency (Freq) | 0/min ~ 100/min |
| Tidal volume (Vt) | 0 mL ~ 2500 mL |
| MV | 0 L/min ~ 99 L/min |
| Airway pressure | 0 cmH2O ~ 100 cmH2O |
| Dynamic lung compliance monitoring | 1 mL/cmH2O ~ 1000 mL/cmH2O |
| Oxygen concentration | 15 % ~ 100 % |
| Alarm and protection | |
| AC power failure alarm | Power failure or no connection |
| Internal backup battery low voltage alarm | ≤ 11.3 ± 0.3 V |
| No tidal volume | No tidal volume within 6 s |
| High minute volume alarm | 5 L/min ~ 99 L/min |
| Low minute volume alarm | 1 L/min ~ 30 L/min |
| High airway pressure alarm | 20 cmH2O ~ 100 cmH2O |
| Low airway pressure alarm | 0 cmH2O ~ 20 cmH2O |
| High oxygen concentration alarm | 19 % ~ 100 % |
| Low oxygen concentration alarm | 18 % ~ 99 % |
| Continuous pressure alarm | (PEEP + 1.5 cmH2O) over 16s |
| Suffocation warning | 5 ~ 60 s |
| Fan error | Show on screen |
| Oxygen deficit | Show on screen |
| The maximum limited pressure | < 12.5 kPa |
| Working condition | |
| Gas source | O2, Air |
| Pressure | 280 kPa - 600 kPa |
| Voltage | 220 V ± 22 V |
| Power frequency | 50 Hz ± 1 Hz |
| Input power | 900 VA(With air compressor) 250 VA(Without air compressor) |
| Oscillogram | Wooden case packing size |
| P-T (Pressure-Time) | Main engine : 560 * 560 * 615 mm |
| F-T (Flow-Time) | G.W. : 30 KG N.W. : 15 KG |
| V-T (Volume-Time) | Air compressor : 685 * 690 * 1140 mm |
| ETCO2 -T (End-Tidal CO2 -Time) | G.W. : 138 KG N.W. : 63 KG |
| P-V Loop (Pressure-Volume Loop) | |
| F-V Loop (Flow-Volume Loop) | |
| P-F Loop (Pressure-Flow Loop) |
| Friendly interface 15" TFT LCD screen display screen saver mode. 14 types of alarm and protection function. 3 of 5 oscillographs can be displayed on the screen at the same time. 5 oscillograms for your choice, 3 of them can be displayed on the screen at the same time. |
 |

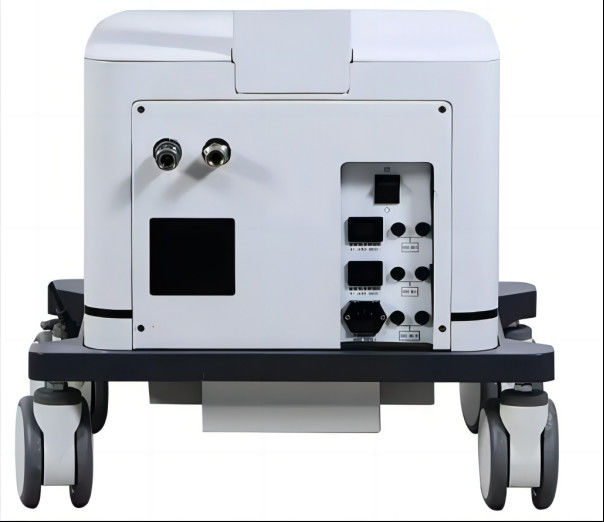

| Air compressor Automatic detection and switch of central gas, cylinder gas supply or air compressor. Make low noise, create quiet environment for doctors and patients. Longer service life and waterproof material. Digital show for parameters, easier and clearer for users know real-time condition. |
|
| Caster Easy to move with 4 casters,easy to stop with 2 brakes. |
|
| Humidifier Heat and wet breathing gas, makes it more comfortable for patient to breathe in. 3 types of humidifier for your choices: one with thermometer for standard, one with digital shown for option, another one has have dual pipeline heating function and servo control function for option. |
|
| Nebulization function Make medicine into small liquid and particle, easier and quicker for patient to breathe in. |
|
| Oxygen sensor Built-in oxygen concentration sensor, ensure stable precision of oxygen concentration. |
|
| Breathing circuit High temperature resistance breathing piplines is reusable and anti-polution. |
|
