Application

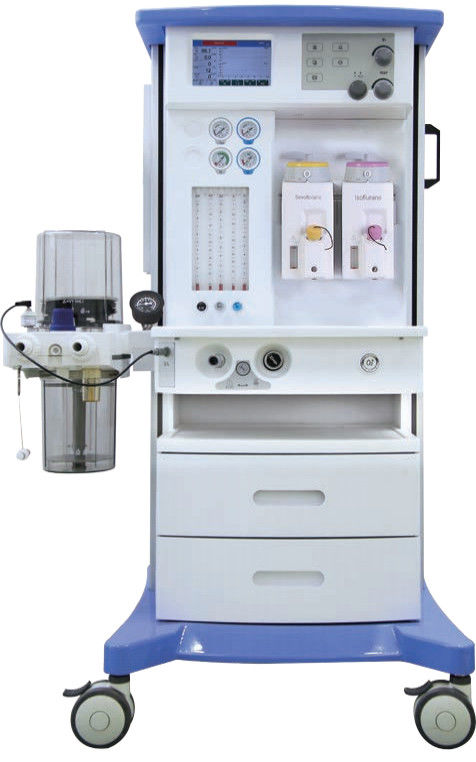

The S6500 anesthesia system has a wide range of application fields in operating rooms, intensive care units, anesthesiology departments and other related departments. Its advanced functions and performance, as well as its adaptability to patients of different ages, make it an ideal anesthesia device that can provide safe, stable and high-quality anesthesia management.
 |
|
|
| 7" screen | Flowmeter | Oxygen sensor |
| 7" screen displays information area, alarm area, monitoring area and setting area. 2-3 hours built-in backup battery. Intelligent three level alarming system with 14 alarm, visual and sound alarm information. 2 oscillograms: P-T, F-T. |
5 Mechanical flowmeters: O2, Air, N2O. Fine control: 0.1-1 L/min Coarse control: 1-10 L/min |
Oxygen sensor makes sure accurate parameters. |
|
|
|
| Bellow | Vaporizer | 2 Cylinder Yokes |
| 1500mL can applied to different patients. Volume of absorber: 1.5 L Integrated design makes installation easily |
One or dual-position Choice: Halothane, Enflurane, lsoflurane, Sevoflurane |
N2O Cylinder Yoke and O2 Cylinder Yoke are standard. |
| Pressure gauge | ACGO and fast oxygen supply | Brake |
| Pressure gauge shows pressure of centre gas system or gas cylinder. |
Emergency situation and revival after operation. |
4 casters with 2 individual brakes. |
| Optional | ||
| AGSS. Gas gauge for gas cylinders. Vital sign monitor, anaesthetic gas monitor. Hand held ETCO2 monitor or Vital sign monitor with ETCO2 |
||
| Ventilation mode |
|
IPPV, A/C, PCV,SIMV, SIGH, MANUAL
|
| Ventilator parameter range | |
| Flowmeter |
O2 (0 ~ 10 L/min)
N2O (0 ~ 10 L/min)
or AIR (0 ~ 10 L/min)
|
| Rapid oxygen supply | 25 L/min - 75 L/min |
| Tidal volume |
0, 20 mL ~ 1500 mL
|
| Frequence(Freq) | 1 /min - 100 /min |
| I:E | 2:1 - 1:6 |
| PEEP | 0 cmH2O - 30 cmH2O |
| Pressure triggering sensitivity (PTr) | -20 cmH2O - 0 cmH2O (Based on PEEP) |
| Flow trigger sensitivity (FTr) | 0.5 L/min - 30 L/min |
| SIGH | 0 (off) 1/100 - 5/100 |
| Apnea ventilation | OFF, 5s - 60s |
| Pressure limit | 20 cmH2O - 100 cmH2O |
| Alarm and protection | |
| The AC power failure alarm | Power failure or no connection |
| Internal battery backup low voltage alarm |
< 11.3 ± 0.3 V
|
| No tidal volume | ≤ 5 mL within 6 s |
| High oxygen concentration alarm | 19 % - 100 % |
| Low oxygen concentration alarm | 18 % - 99 % |
| High airway pressure alarm | 2 cmH2O - 100 cmH2O |
| Low airway pressure alarm | 0 cmH2O - 20 cmH2O |
| High minute volume alarm |
Adult (5 L/min ~ 20 L/min)
|
| Low minute volume alarm |
Paed (1 L/min ~ 15 L/min, 0 ~ 10 L/min)
|
| Continuous pressure alarm | (PEEP+1.5 kPa) over 16 s |
| Suffocation warning | 5 s - 60 s no spontaneous ventilation |
| The maximum limited pressure | ≤ 12.5 kPa |
| Fan error | Show on screen |
| Oxygen deficit | Show on screen |
| Monitoring parameter | |
| Frequence(Freq) | 0 /min - 100 /min |
| Tidal volume (Vt) | 0 mL - 2000 mL |
| MV | 0 L/min - 100 L/min |
| Oxygen concentration | 15 % - 100 % |
|
Ppeak
|
0 cmH2O ～ 100 cmH2O
|
|
Cydn
|
1 mL/cmH2O ～ 1000 mL/cmH2O
|
| Working condition | |
| Gas source | O2, N2O, AIR |
| Pressure | 280 kPa ~ 600 kPa |
| Voltage | 100 ~ 240 V |
| Power frequency | 50/60 Hz |
| Oscillogram |
| P-T (pressure - time) |
| F-T (flow - time) |
| P-V loop (pressure - volume loop) |
| Wooden case packing size |
| Wooden case packing size : L 760 * W 970 * H 1550 mm |
| G.W. :143 KG N.W. :82.5 KG CBM :1.33 m³ |
